Brand Name : KSPACK
Model Number : YSF 900/1200/1400/1600*1800-2800
Certification : ce
Place of Origin : Cangzhou
MOQ : 1set
Price : 10000-34000usd
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 5 sets per month
Delivery Time : 30-50 working days
Packaging Details : Normally send by 20 or 40 feet container ,so just plastic membrane package,if customer need wooden package can provide.
Product Name : Corrugated carton box printing machine
Machine color : blue or gray or black
Material : 3/5/7 layers Corrugated cardboard
Colors can print : 1-4 colors can choose
Other unit can add : Die-cutting or Slotting or Stacker
Working Speed : 60-80m/min ,
The machine product : Any corrugated box ,like ,pizza/sweet/shipping/fruit/packing box
Need workers : 2-3 workers are best
The Electricity : Any 3 phase voltage
Delivery time and port : 30-50days ,Tianjin Port
Chain Feeder Semi Auto 1-4 Colors 80m/Min Pizza Box Printing Machine
The main technical parameters:
Model | YSF——¢300*1800mm |
Printing color | 4colors |
Maximum mechanical speed (sheets/min) | 40-60 |
Wall thickness (mm) | 40 |
Gear thickness (mm) | 40 |
Maximum paper feed size (mm) | 900X1800 |
Minimum paper feed size (mm) | 200X600 |
Maximum printing area (mm) | 900X1600 |
Standard printing plate thickness (mm) | 3.2---7.2 |
Adapt to cardboard thickness (mm) | 3---12 |
Paperboard processing accuracy (mm) | Printing accuracy±0.5/color |
900*1800/2000/2200/2400/2600/2800/3000mm |
1200*1800/2000/2200/2400/2600/2800/3000mm |
1450*1800/2000/2200/2400/2600/2800/3000mm |
1600*1800/2000/2200/2400/2600/2800/3000mm |
1800*1800/2000/2200/2400/2600/2800/3000mm |
Feeder Department:
1. Machine clutch
[1] The electric control machine clutch is equipped with an alarm bell, which keeps ringing to warn while traveling to ensure the safety of operators.
[2] The host motor start protection device. (When the machine is not locked, the host cannot be started)
Printing Department:
1. Phase adjustment mechanism
[1] Planetary gear structure.
[2] The printing phase adopts electric digital 360° adjustment. (Can be run or stopped Adjustment).
2. Ink cycle
[1] Pneumatic diaphragm pump, stable ink supply, simple operation and maintenance.
[2] Ink filter screen to filter impurities.
Slotting Department:
[1]Slot knives 7mm use ally steel material after heattreatment ,grinding , teeth model knvies , Up slot knives diameter 300mm.
[2]Creasing roll diameter 110mm,creasing wheel diameter 180mm.

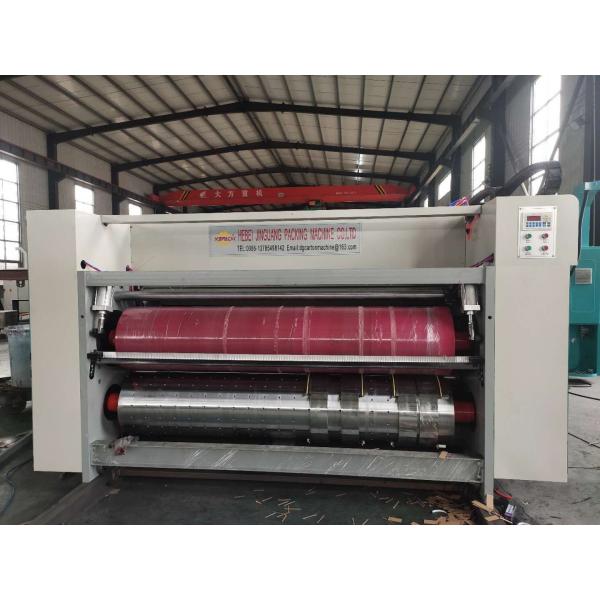

Die-cutting Department:
This is the die-cutting
This is the die-cutting (attachment slotting),the die-cutting without the slot knvies is ok
2.Rubber pad roller (upper roller)
[1] Balancing correction to increase operation stability.
[2] The thickness of the rubber pad is 9m. Width 250mm. Mechanical type transverse 40mm swimming device. Mechanical differential.
The machines videos :
https://youtu.be/DrM6xZ7Vtlk
https://youtu.be/1nrmMDty2Oo
https://youtu.be/F7yW_-ewn4s
https://youtu.be/n-H_ReWXoFw
https://youtu.be/hzM7tS0gzdA
![]() |
Chain Feeder Semi Auto 1-4 Colors Fruit Box Pizza Box Corrugated Box Printing Machine cardboard slot and die-cut Images |
